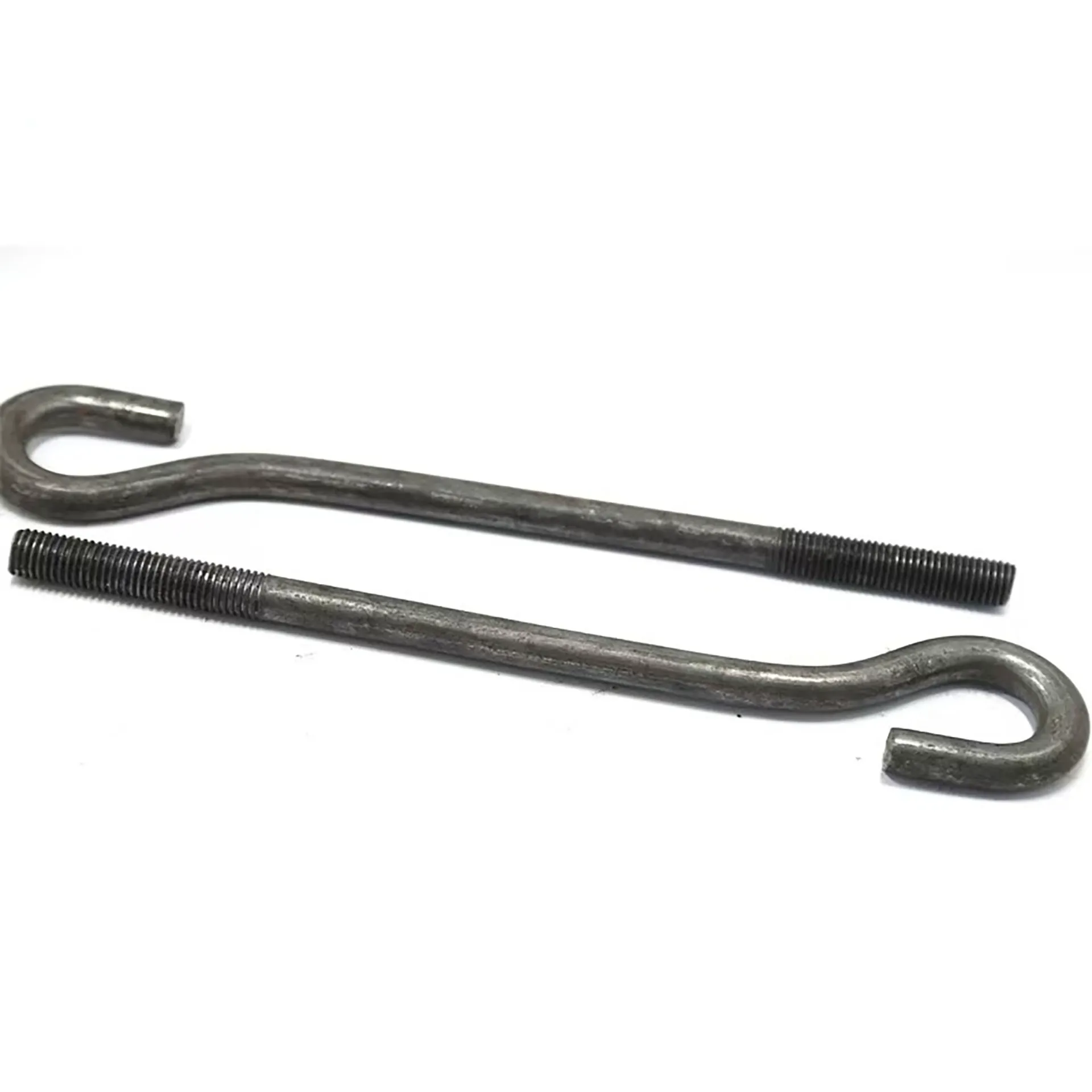

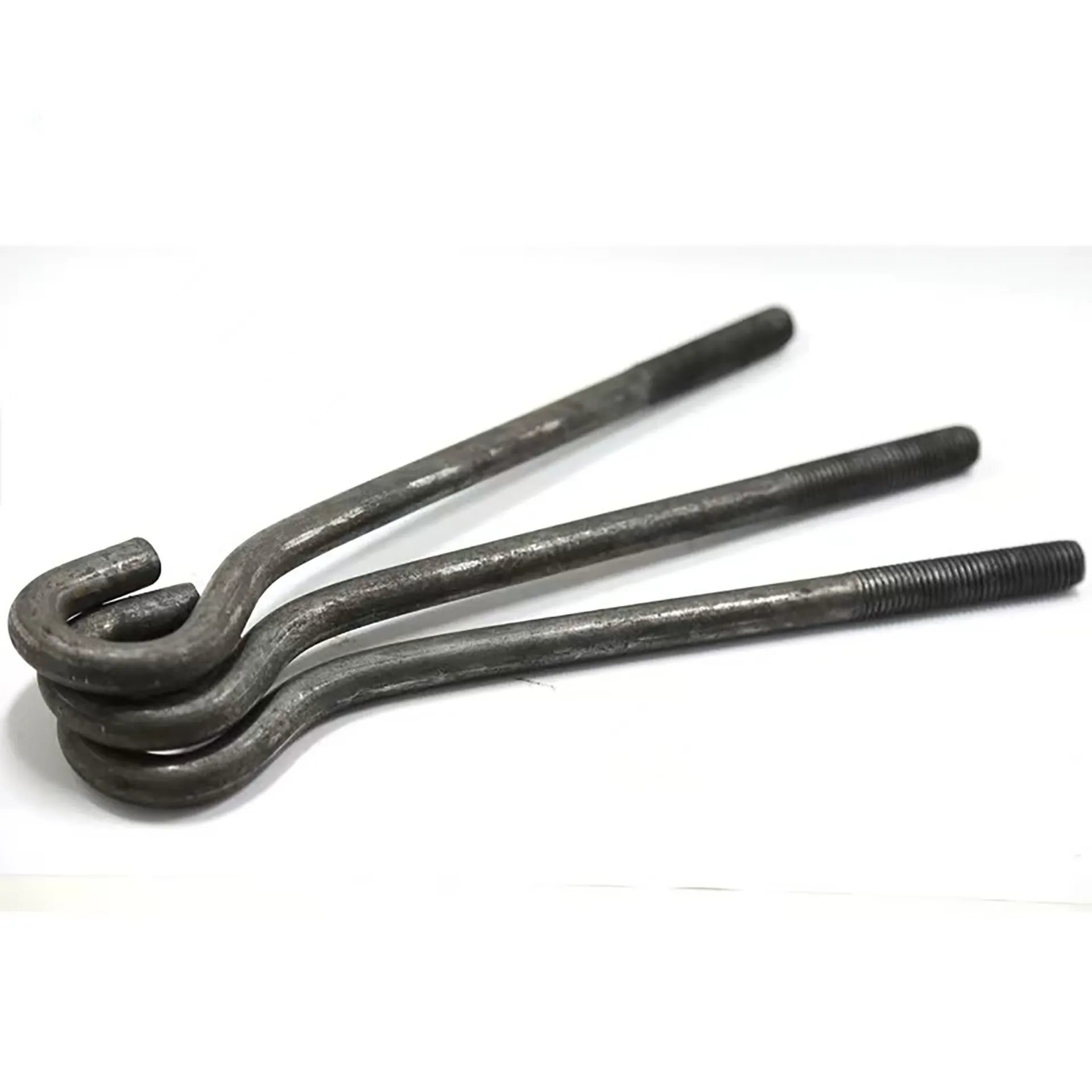

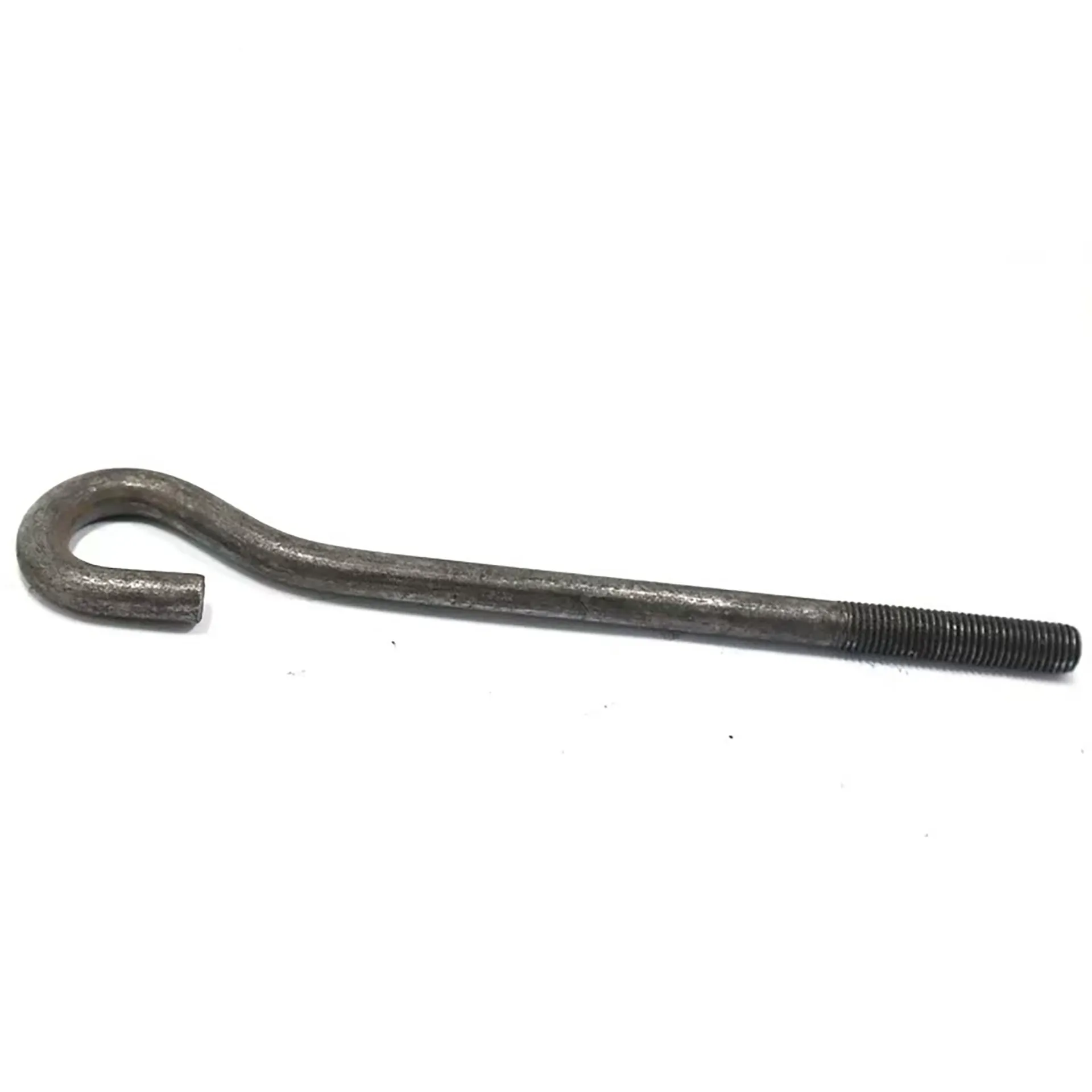

9-Shaped Anchor Bolt / 9-Hook Bolt
Advantages of the 9-Shaped Anchor Bolt:
The extended hook design increases its anchoring surface area within concrete, delivering superior bonding strength and anchoring force. This configuration ensures exceptional stability under heavy tensile forces, shear loads, and vibrational stresses, significantly reducing the risk of loosening. It is ideally suited for structures demanding high-performance anchoring solutions.
Key Applications:
Widely used in projects requiring high anchoring strength and stability, such as large equipment foundations, heavy-duty steel structures, and bridge supports. Typical applications include the foundational fixation of large machine tools and cranes, as well as column base connections in steel structure workshops.
SERIVCE
Reliable After-Sales Support
Swift resolution for all technical issues & product inquiries.
20+ Years of Global Export Expertise
Proven experience in international logistics & compliance.
Detailed Product Specifications On Request
Customizable spec sheets for informed purchasing decisions.
Instant Quote Response
Submit inquiries for prompt pricing & solution proposals.
Certified Export Documentation & Timely Shipment
Hassle-free logistics with professionally prepared export papers.
Custom Packaging with Pre-Shipment Visual Verification
Branded/secure packaging with photo confirmation before dispatch.
Premium Quality at Competitive Pricing
Industry-leading products optimized for value & performance.
How 9-Shaped Anchor Bolts Improve Concrete Fixing Stability？
9-shaped anchor bolts, also known as 9-hook anchor bolts, are widely used in concrete fixing systems because of their excellent ability to enhance structural stability. Their unique geometry, featuring a curved hook similar to the number “9,” allows them to achieve a strong mechanical interlock within concrete foundations. This design significantly improves load transfer performance and long-term anchoring reliability in construction and industrial applications.
One of the key ways 9-shaped anchor bolts improve stability is through their deep mechanical anchoring effect. When embedded in concrete, the hooked end prevents the bolt from being pulled out under tensile forces. Unlike straight bolts that rely mainly on friction or chemical bonding, the 9-hook structure physically locks into the hardened concrete, creating a strong resistance against pull-out forces. This makes them especially suitable for heavy-duty structural applications such as steel columns, machinery foundations, and bridge supports.
Another important factor is load distribution efficiency. The curved hook design helps distribute applied loads more evenly into the surrounding concrete. Instead of concentrating stress at a single point, the force is spread along the embedded section of the bolt. This reduces the risk of concrete cracking or localized failure, improving the overall durability of the foundation system. As a result, 9-shaped anchor bolts are often chosen for structures that must withstand dynamic loads, vibration, or seismic activity.
In addition, 9-shaped anchor bolts enhance stability by improving resistance to environmental stress. In real-world applications, structures are often exposed to wind loads, temperature changes, moisture, and chemical environments. The secure anchoring provided by the hook design ensures that the bolt remains firmly fixed even under fluctuating conditions. When combined with corrosion-resistant materials such as galvanized or stainless steel, their performance becomes even more reliable in outdoor or industrial environments.
Installation precision also plays a role in their stability performance. Because 9-shaped anchor bolts are typically pre-embedded before concrete pouring, they become an integral part of the foundation once the concrete cures. Proper positioning ensures optimal alignment and embedding depth, which directly affects their load-bearing capacity. When installed correctly, the bond between concrete and bolt becomes extremely strong and durable.
Furthermore, 9-shaped anchor bolts are highly effective in preventing structural displacement. In heavy machinery installations, even slight movement can affect operational performance and safety. The hook structure acts as a physical anchor that resists both vertical and lateral forces, helping maintain equipment alignment and structural integrity over time.
Overall, 9-shaped anchor bolts improve concrete fixing stability through their mechanical interlocking design, superior load distribution, strong environmental resistance, and reliable installation method. These advantages make them a trusted choice in modern construction, ensuring long-term safety and structural performance in demanding engineering projects.
How to Select the Right Size 9-Hook Anchor Bolt for Construction？
Selecting the correct size of a 9-hook anchor bolt is a critical step in ensuring structural safety, load-bearing performance, and long-term stability in construction projects. Because these bolts are used in concrete foundations to secure steel structures, machinery, and infrastructure components, choosing the appropriate dimensions directly affects the overall reliability of the installation.
The first factor to consider is load requirements. Different construction applications require different levels of tensile and shear strength. For light structural applications such as handrails or small equipment supports, smaller sizes may be sufficient. However, for heavy-duty applications like steel columns, industrial machinery, or bridge supports, larger diameter bolts are required to handle higher loads. Engineers typically calculate the expected load to determine the minimum bolt size needed for safe performance.
Another important factor is concrete strength and foundation conditions. The performance of a 9-hook anchor bolt depends heavily on the quality of the surrounding concrete. High-strength concrete allows for better load transfer and supports larger bolt sizes, while weaker concrete may require careful sizing to avoid cracking or failure. In addition, the depth of embedding must be sufficient to fully engage the hook portion within the concrete mass.
Bolt diameter is one of the key selection parameters. Common sizes range from small diameters for light-duty use to larger diameters for heavy structural applications. Larger diameters provide higher tensile strength and better resistance to pull-out forces. However, increasing bolt size also requires deeper embedding and thicker concrete sections, so design compatibility must always be considered.
Embedding length is equally important. The effectiveness of a 9-hook anchor bolt depends not only on its diameter but also on how deeply it is embedded into the concrete. Longer embedding lengths improve mechanical interlock and load distribution, enhancing overall stability. Engineers must ensure that the hook section is fully covered by concrete to maximize anchoring performance.
Environmental conditions should also be taken into account. In outdoor or corrosive environments, selecting galvanized or stainless steel bolts is essential for durability. In such cases, size selection may also be adjusted to compensate for long-term environmental wear and maintain safety standards over time.
Finally, compliance with engineering standards and project specifications is crucial. Many construction projects follow specific design codes that define minimum bolt sizes, spacing, and installation requirements. Following these standards ensures structural safety and regulatory compliance.
In conclusion, selecting the right size 9-hook anchor bolt involves evaluating load conditions, concrete strength, diameter, embedding depth, environmental factors, and engineering standards. Proper selection ensures optimal performance, safety, and long-term stability in all types of construction projects.
